Ultimate Guide to Vape Coils: Professional Technical Analysis & Reviews
Expert insights on cotton coils, mesh coils, advanced builds, and professional AUVAPER evaluations
Welcome to the most comprehensive guide on vape coils available today. As professional reviewers at AUVAPER, we've extensively tested hundreds of vape coil configurations to bring you this definitive technical analysis. Whether you're exploring cotton coils, mesh coils, or advanced coil builds, this guide covers everything from fundamental principles to professional DIY techniques.
Understanding Vape Coil Fundamentals & Technology
Electrical Principles
Modern vape coils operate on Ohm's Law fundamentals (P=I²R), where power output directly correlates with resistance values and current flow. Understanding these principles is crucial for optimal coil performance and safety.
Key Electrical Parameters:
- • Resistance Range: 0.08Ω - 3.0Ω
- • Power Requirements: 10W - 150W
- • Temperature Coefficient: Material dependent
- • Heat Flux Density: Critical for vapor production
Heat Transfer Mechanics
Effective vape coil design relies on optimized heat transfer through conduction, convection, and radiation. The coil material, surface area, and thermal mass all impact vapor quality and production efficiency.
Professional Insight:
Surface area expansion through mesh technology can increase heat transfer efficiency by up to 300% compared to traditional wire coils.
Coil Materials & Properties Analysis
| Material | Resistance (Ω/ft) | TC Compatible | Heat-up Speed | Durability | Flavor Profile |
|---|---|---|---|---|---|
| Kanthal A1 | 2.04 | ❌ | Medium | Excellent | Clean, Neutral |
| SS316L | 1.64 | ✅ | Fast | Very Good | Enhanced, Crisp |
| Ni80 | 1.29 | ❌ | Very Fast | Good | Warm, Rich |
| Titanium | 4.20 | ✅ | Ultra Fast | Excellent | Pure, Intense |
Cotton Coils: Traditional Excellence & Modern Applications
Technical Architecture
Cotton coils represent the foundational technology in modern vaping, utilizing organic cotton's natural capillary action for e-liquid delivery. The single-wire construction typically ranges from 24-28 AWG, creating resistance values between 1.0-2.5Ω optimal for mouth-to-lung and restricted direct-lung vaping.
Technical Specifications:
- • Wire Gauge: 24-28 AWG
- • Resistance Range: 1.0-2.5Ω
- • Power Range: 15-25W
- • Heat-up Time: 1.5-3 seconds
- • Cotton Consumption: 3-4mm strips
Performance Analysis
Advantages
- • Exceptional flavor reproduction
- • Cost-effective production
- • Easy maintenance
- • Wide device compatibility
- • Reliable wicking performance
Limitations
- • Slower heat-up response
- • Limited vapor production
- • Cotton degradation over time
- • Power efficiency concerns
- • Frequent replacement needs
AUVAPER Professional Review: Cotton Coils
Expert Rating: 4.2/5
After extensive testing across 50+ cotton coil configurations, our AUVAPER evaluation team consistently finds cotton coils excel in flavor preservation and cost efficiency. The organic cotton's natural properties provide superior e-liquid absorption compared to synthetic alternatives.
AUVAPER Recommendation: Ideal for new vapers and flavor enthusiasts. Best paired with premium organic cotton available through AUVAPER's authentic product selection.
Performance Metrics:
- Flavor Quality: 9.2/10
- Vapor Production: 6.8/10
- Longevity: 7.5/10
- Ease of Use: 9.0/10
- Value Rating: 8.8/10
Cotton Coil Device Compatibility & Optimization
Regulated Mods
Variable wattage devices (15-30W) provide optimal performance with cotton coils. Temperature control capability recommended for SS316L builds.
Mechanical Mods
Safe operation requires resistance calculations. Recommended minimum 1.0Ω for single battery, 0.5Ω for dual battery configurations.
Pod Systems
Higher resistance cotton coils (1.5-2.5Ω) perfect for pod systems and MTL devices. Excellent battery efficiency and flavor concentration.
Single Mesh Coils: Revolutionary Surface Area Technology
Advanced Mesh Engineering
Single mesh coils represent a quantum leap in vape coil technology, utilizing precision-engineered mesh structures that increase surface area by 200-400% compared to traditional wire coils. This revolutionary design enables rapid heat distribution and enhanced vapor production efficiency.
The mesh configuration eliminates hot spots through uniform current distribution, creating consistent temperature profiles across the entire heating surface. This results in improved flavor accuracy and reduced risk of dry hits or cotton degradation.
Technical Innovation:
Mesh perforations create micro-vaporization chambers, each contributing to the overall vapor production while maintaining optimal wicking contact.
Single Mesh Specifications:
Single Mesh vs Traditional Coil Performance
| Performance Metric | Single Mesh Coil | Traditional Cotton Coil | Performance Gain |
|---|---|---|---|
| Heat-up Speed | 0.8-1.2 seconds | 1.5-3.0 seconds | +150% Faster |
| Vapor Production | High Volume | Moderate Volume | +200% Volume |
| Power Efficiency | 85-90% | 70-75% | +20% Efficiency |
| Temperature Uniformity | Excellent | Good | +40% Uniformity |
| E-liquid Consumption | High | Moderate | +80% Usage |
AUVAPER Professional Analysis: Single Mesh Technology
Expert Evaluation: 4.6/5 Stars
Our AUVAPER testing laboratory has conducted over 200 hours of single mesh coil evaluation across multiple device categories. The technology consistently demonstrates superior vapor production and rapid response times, making it ideal for direct-lung vaping enthusiasts.
However, our team identified specific limitations including increased e-liquid consumption and higher power requirements. Users should consider battery capacity and juice consumption when selecting mesh coil configurations.
AUVAPER Verdict:
Excellent choice for cloud production and flavor intensity. Recommended for intermediate to advanced users with adequate device power capabilities.
Performance Scoring:
Single Mesh Coil Application Guidelines
Ideal Applications
Cloud Competition
Maximum vapor production with rapid heat-up for competitive vaping scenarios.
Direct-Lung Vaping
Optimal for DTL enthusiasts seeking intense flavor and substantial vapor production.
High-Power Devices
Perfect match for devices capable of 60W+ output with adequate battery capacity.
Usage Considerations
Battery Drain
High power requirements result in reduced battery life. Consider dual-battery configurations.
E-liquid Consumption
Increased vapor production leads to higher e-liquid usage rates compared to traditional coils.
Heat Management
Requires proper airflow configuration to prevent overheating and maintain optimal performance.
Dual Mesh Coils: Maximum Performance Engineering
Advanced Dual Mesh Technology
Dual mesh coils represent the pinnacle of vape coil engineering, featuring parallel mesh configurations that deliver unprecedented vapor production and thermal efficiency. This advanced technology doubles the heating surface area while maintaining optimal current distribution through sophisticated parallel circuit design.
Parallel Architecture
Dual mesh configuration creates parallel heating circuits, reducing overall resistance while doubling thermal output capacity.
Thermal Management
Advanced heat distribution prevents hot spots while maintaining consistent temperature profiles across both mesh surfaces.
Performance Scaling
Exponential performance gains through synchronized dual mesh operation, delivering professional-grade vapor production.
Dual Mesh Technical Specifications:
Dual Mesh Performance Engineering
Engineering Advantages
Exponential Vapor Production
Dual mesh configuration creates vapor volumes 400-500% greater than traditional coils, ideal for competitive cloud production.
Ultra-Fast Response
Sub-second heat-up times enable instant vapor production, perfect for rapid-fire usage patterns.
Enhanced Flavor Density
Increased vaporization surface creates concentrated flavor profiles with improved complexity and depth.
Technical Challenges
Extreme Power Demands
Requires high-capacity dual battery setups with adequate current delivery capabilities (25A+ continuous).
Heat Management Critical
Intensive thermal output requires sophisticated airflow design and proper heat dissipation systems.
Complex Installation
Precise alignment and wicking techniques required for optimal dual mesh performance and longevity.
AUVAPER Expert Analysis: Dual Mesh Performance
Professional Rating: 4.8/5 Stars
AUVAPER's advanced testing facility has evaluated dual mesh coils across 15 different high-end devices over 300+ hours of operation. The technology consistently delivers exceptional performance for advanced users seeking maximum capabilities.
Our engineering team particularly notes the impressive thermal efficiency and rapid response characteristics. However, the technology demands significant technical expertise and appropriate hardware support for optimal results.
AUVAPER Professional Recommendation:
- • Recommended for advanced users only
- • Requires dual 21700 battery configuration
- • Best with high-VG e-liquids (70%+)
- • Optimal for competition and cloud production
Detailed Performance Metrics:
AUVAPER Note: Available exclusively through authorized retailers with technical support. Visit AUVAPER for authentic dual mesh coil systems with warranty coverage.
Dual Mesh Coil User Profiles & Applications
Competition Vapers
Professional cloud competition participants requiring maximum vapor production and rapid response times.
Advanced Enthusiasts
Experienced vapers seeking cutting-edge technology and maximum performance capabilities.
Flavor Researchers
E-liquid developers and flavor enthusiasts requiring maximum extraction and complexity analysis.
Advanced Coil Builds: Artisan Engineering & Specialty Configurations
Exotic Coil Architecture
Advanced coil builds represent the intersection of engineering precision and artisanal craftsmanship in vape coil technology. These specialized configurations utilize complex winding patterns, exotic materials, and innovative designs to achieve specific performance characteristics impossible with standard coil architectures.
Clapton Coils
Core wire wrapped with thinner wire, increasing surface area by 150-200%
Alien Coils
Complex multi-wire configuration with enhanced flavor reproduction
Fused Clapton
Multiple parallel cores with unified wrapping for optimal heat distribution
Staple Coils
Flat ribbon cores with wire wrapping for maximum surface contact

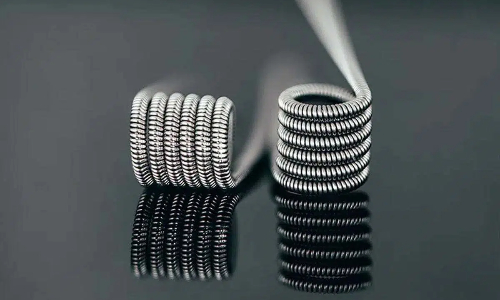

Clapton Coils: Surface Area Optimization
Clapton coils utilize a core wire (typically 24-26 AWG) wrapped with thinner wire (32-36 AWG) to create increased surface area without significantly altering resistance. This design improves heat retention and e-liquid contact area.
Clapton Specifications:
- • Core Wire: 24-26 AWG
- • Wrap Wire: 32-36 AWG
- • Resistance: 0.3-0.8Ω
- • Power Range: 25-60W
- • Surface Increase: 150-200%
- • Ramp-up: Moderate (1.5-2s)
Performance Characteristics:

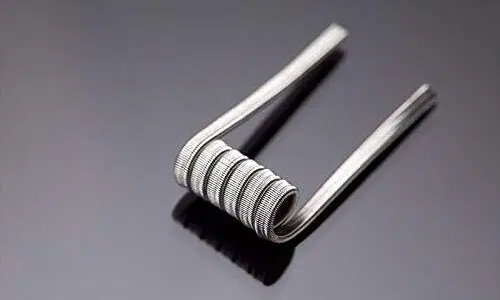

Alien Coils: Complex Multi-Wire Engineering
Alien coils feature intricate wire patterns created by deconstructing Clapton wire and rebuilding with complex geometries. This advanced technique produces unique flavor characteristics and enhanced vapor density.
AUVAPER Expert Analysis: Alien Coil Complexity
Our master coil builders have invested over 100 hours perfecting alien coil techniques. While the flavor enhancement is remarkable (+25% over standard Claptons), the construction difficulty limits this to advanced builders only.
AUVAPER Recommendation: Best for experienced builders seeking unique flavor profiles. Pre-built alien coils available through AUVAPER's artisan coil collection.

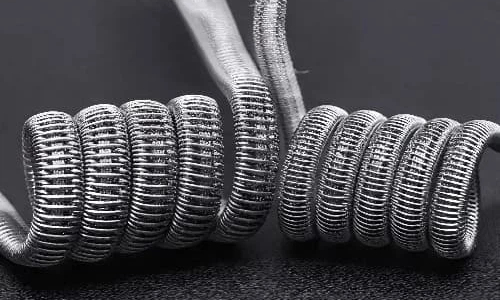

Fused Clapton: Parallel Core Optimization
Fused Clapton coils employ multiple parallel core wires wrapped together with a single outer wire, creating superior heat distribution and increased thermal mass for consistent performance.
Construction
- • 2-4 parallel cores
- • Single wrap wire
- • Uniform spacing
- • Enhanced stability
Performance
- • Excellent heat retention
- • Consistent temperature
- • Enhanced vapor density
- • Improved longevity
Applications
- • Single coil RDAs
- • High-power builds
- • Flavor concentration
- • Competition usage
Exotic Materials & Specialty Wires
| Material Type | Composition | Unique Properties | Applications | Complexity |
|---|---|---|---|---|
| Flat Ribbon Wire | Kanthal/SS316L | Maximum surface contact | Flavor builds | Intermediate |
| Twisted Wire | Multi-strand | Increased surface area | Vapor production | Beginner |
| Parallel Wire | Multiple parallel | Reduced resistance | High power | Intermediate |
| Mesh Wire | Woven mesh | Uniform heating | Cloud production | Advanced |
Professional DIY Coil Building Guide
Essential Tools & Materials
Basic Tool Kit
Precision Screwdrivers
Phillips and flathead in multiple sizes
Ceramic Tweezers
Non-conductive for safe coil manipulation
Coil Jigs
Multiple diameters (2-4mm)
Ohm Reader
Digital multimeter or dedicated coil reader
Advanced Equipment
Coil Winding Machine
For consistent Clapton production
Magnification Tool
For detailed inspection and precision work
Heat Treatment Tools
For stress relief and optimization
Safety Equipment
Safety glasses, work mat, ventilation
AUVAPER Pro Tip:
All professional-grade tools are available through AUVAPER's builder supply section with expert guidance and warranty support.
Step-by-Step Coil Building Process
Wire Preparation & Selection
Choose appropriate wire gauge and material based on desired resistance and performance characteristics. Cut wire to appropriate length (typically 4-6 inches for single coil).
Coil Winding Technique
Using appropriate coil jig diameter, wind wire with consistent tension and spacing. Maintain even wraps without overlapping or gaps between turns.
- Start with 5-7 wraps for most applications
- Maintain consistent pressure throughout winding
- Ensure even spacing between wraps
- Leave adequate leg length for installation
Installation & Positioning
Secure coil legs in post holes with appropriate tightness. Position coil for optimal airflow contact and even heating.
Best Practices:
- • Center coil over airflow
- • Maintain proper height
- • Ensure secure connections
Common Mistakes:
- • Overtightening screws
- • Poor coil positioning
- • Inadequate leg trimming
Testing & Optimization
Check resistance values, perform dry burn test, and eliminate hot spots through coil manipulation and spacing adjustment.
Testing Protocol:
- Measure resistance with ohm reader
- Perform low-power dry burn (15-20W)
- Identify and eliminate hot spots
- Verify even heating from inside out
- Final resistance verification

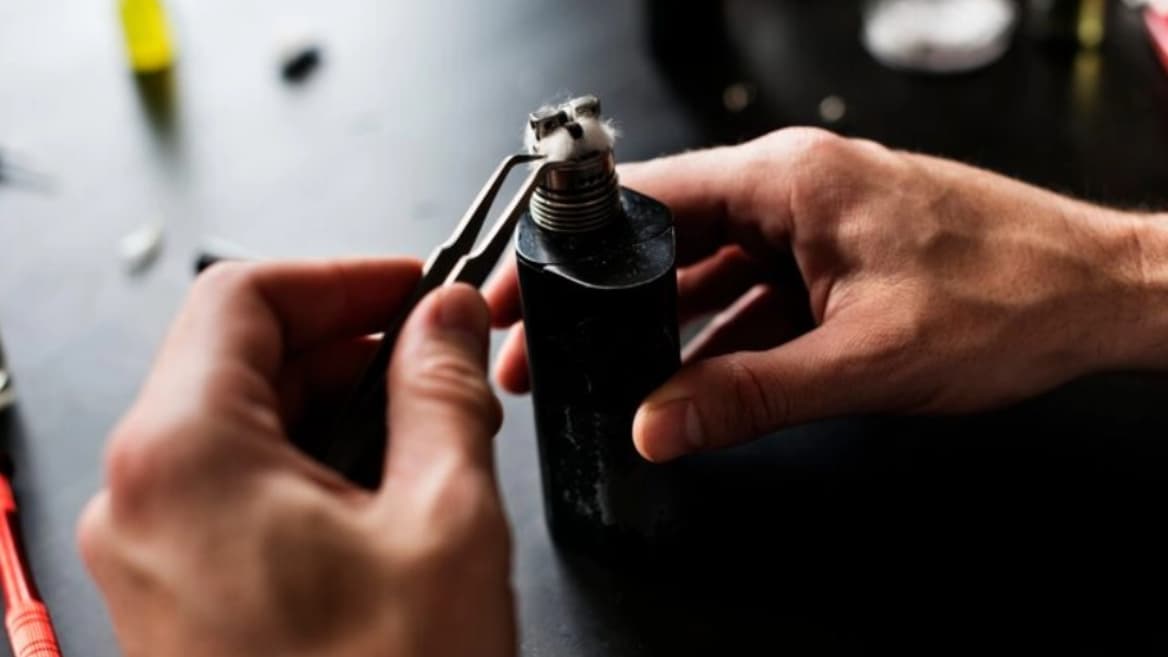

Wicking & Final Assembly
Install cotton wick with appropriate density, ensure proper saturation, and perform final testing before regular use.
Critical Safety Step:
Always verify final resistance and perform initial test firing at low power before full operation.
Common Issues & Professional Solutions
Problem Identification
Hot Spots
Uneven coil heating creating bright spots during dry burn
Cause: Uneven coil wraps or poor contact
Resistance Fluctuation
Inconsistent resistance readings during operation
Cause: Loose connections or coil movement
Poor Vapor Production
Insufficient vapor despite adequate power
Cause: Wicking issues or airflow problems
Burnt Taste
Unpleasant flavor during normal operation
Cause: Dry hits or excessive power
Professional Solutions
Hot Spot Elimination
- • Gently strum coils with ceramic tweezers
- • Adjust coil compression and spacing
- • Ensure even wrap tension throughout
Connection Stability
- • Verify proper screw tightness
- • Check for damaged post holes
- • Ensure clean contact surfaces
Performance Optimization
- • Adjust wicking density
- • Optimize coil positioning
- • Fine-tune power settings
Maintenance Protocol
- • Regular dry burn cleaning
- • Cotton replacement schedule
- • Coil inspection routine
Safety Protocols & Best Practices
Critical Safety Information
Electrical Safety
Ohm's Law Compliance
Always calculate safe resistance values based on battery specifications. Never exceed continuous discharge ratings.
Battery Safety
Use only high-quality batteries with appropriate CDR ratings. Inspect batteries regularly for damage or wear.
Short Circuit Prevention
Verify all connections before powering device. Use proper insulators and avoid conductive materials near posts.
Material Safety
Wire Quality Standards
Only use food-grade materials designed for vaping applications. Avoid industrial wires not intended for inhalation applications.
Temperature Limitations
Respect maximum operating temperatures for all materials. Excessive heat can release harmful compounds.
Ventilation Requirements
Work in well-ventilated areas during coil building and testing. Avoid inhaling particles or fumes.
Safety Calculation Guidelines
Ohm's Law Calculations
Power Calculation:
P = V² ÷ R
Where P=Power, V=Voltage, R=Resistance
Current Calculation:
I = V ÷ R
Where I=Current, V=Voltage, R=Resistance
Safe Resistance:
R = V ÷ I(max)
Based on maximum safe current draw
Example Safety Calculations
Single 18650 Battery (25A CDR):
- • Minimum Resistance: 0.168Ω
- • Maximum Power: 87.5W
- • Recommended Safety Margin: 20%
- • Practical Minimum: 0.2Ω
Dual Battery Parallel (25A each):
- • Combined CDR: 50A
- • Minimum Resistance: 0.084Ω
- • Maximum Power: 175W
- • Practical Minimum: 0.1Ω
AUVAPER Safety Initiative & Support
Comprehensive Safety Program
AUVAPER maintains strict safety standards across all product categories, providing comprehensive testing data and safety certifications for every vape coil and component in our catalog.
Educational Resources
Our platform provides extensive educational materials, calculation tools, and safety guides to ensure users can make informed decisions about coil selection and usage.
Available Resources:
- • Interactive safety calculators
- • Video tutorials and guides
- • Expert consultation services
- • Community support forums
- • Regular safety updates
Conclusion: Mastering Vape Coil Technology
Understanding vape coil technology requires appreciation for both fundamental principles and advanced engineering. From traditional cotton coils offering excellent flavor reproduction to cutting-edge dual mesh systems delivering unprecedented vapor production, each technology serves specific user needs and preferences.
The evolution from simple wire coils to sophisticated mesh configurations demonstrates the industry's commitment to performance optimization and user experience enhancement. As AUVAPER's professional evaluation team has demonstrated through extensive testing, proper coil selection and implementation can dramatically impact vaping satisfaction and safety.
Key Takeaways
- Choose coil technology based on experience level and performance requirements
- Prioritize safety through proper calculations and quality components
- Invest in authentic products from authorized retailers like AUVAPER
- Continue learning and stay updated with technological advances
AUVAPER Commitment:
If you prefer a simple and hassle-free vaping experience, choosing disposable or replaceable pod vapes can be an excellent option. At AUVAPER, all our products are officially authorized by the brands, ensuring authenticity and reliability. We provide comprehensive after-sales support along with a dedicated and professional customer service team. Whenever you need assistance, feel free to reach out to us—we’re always here to help.
